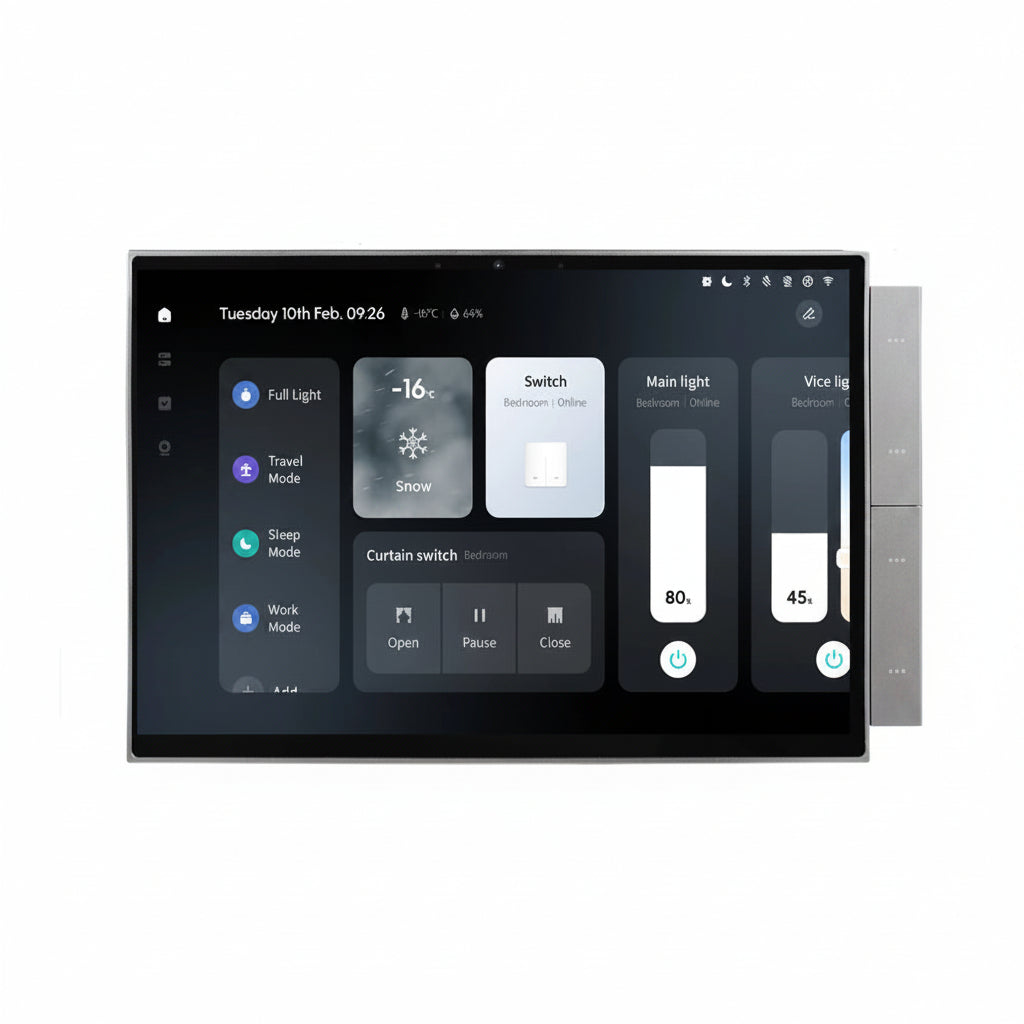

10.1-Inch Smart Central Control Screen MAX

The 10.1-Inch Smart Central Control Screen MAX is designed for indoor spaces and combines smart-device control, interconnection, entertainment, and security functions in one central panel. Users can manage compatible smart devices through physical buttons, the touchscreen, and voice interaction. It supports an in-wall base or desktop base and can be secured to a wall using the included wall bracket.

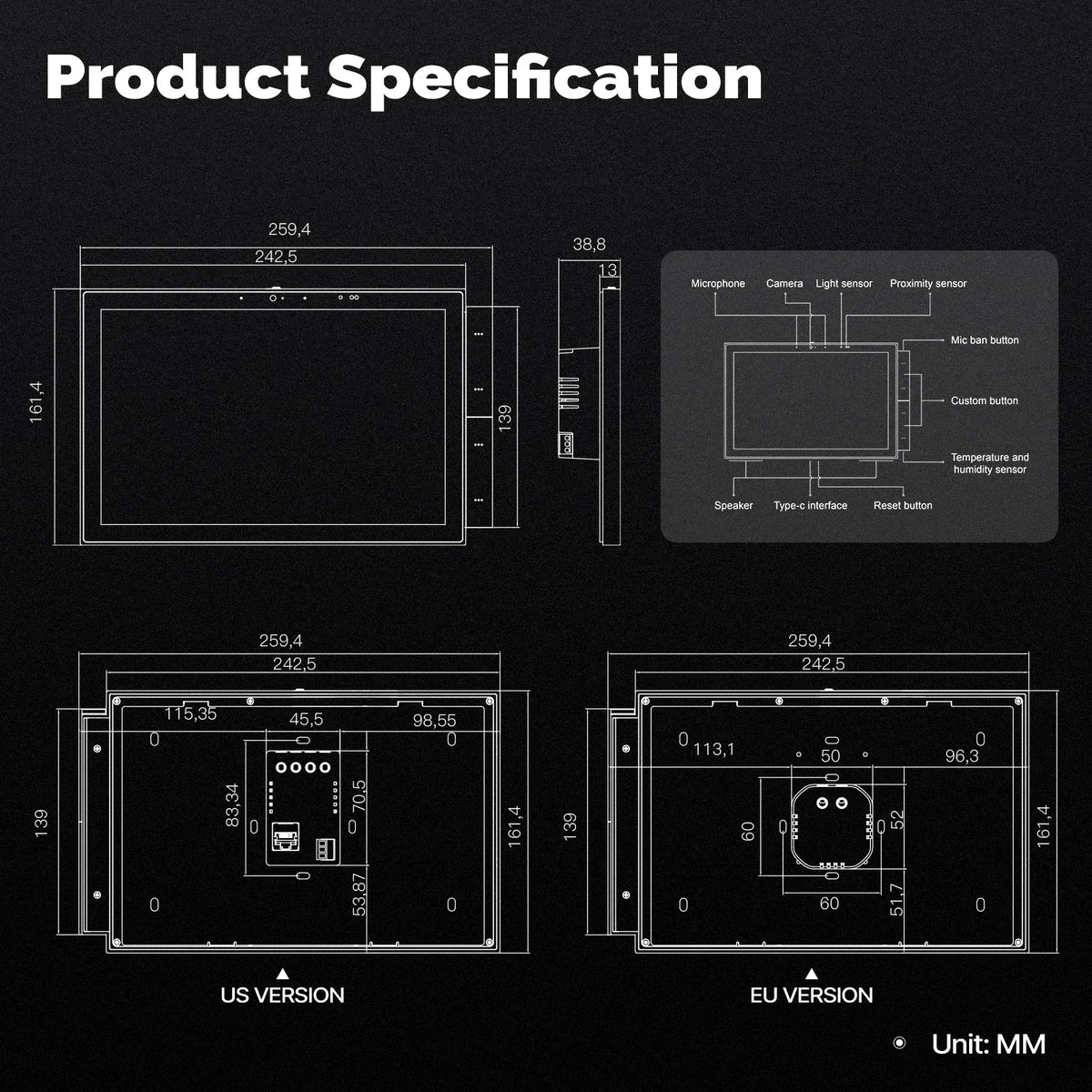

Specifications

• Product Type: Embedded computer

• Processor: Quad-core high-performance processor

• Screen Size: 10.1 inches

• Resolution: 1920 × 1200

• Memory: 2GB RAM + 8GB ROM

• Microphones: Two

• Speaker: 2 × 1.8W

• Protocols: Wi-Fi, Bluetooth, Zigbee, and RS-485

• Interfaces: 220V neutral-wire connection and 12V DC

• Power Supply: Live and neutral wires or Type-C connection

• Battery: Not included

Features

• Integrated Gateway: Independent Zigbee and Bluetooth chips support Bluetooth BLE and BLE Mesh sub-devices with localized control capabilities.

• Device Control: Supports compatible smart-device access and multiple control methods.

• Scene Control: Custom physical buttons, touchscreen interaction, and voice interaction can trigger configured scenes.

• Video Interconnection: Supports IPC preview monitoring, video calls, voice calls, and direct interconnection between compatible control panels and applications.

• Custom Controls: Four customizable physical buttons support associated devices and scenes, while the shortcut panel provides access to multiple controls on one screen.

• Rich Interface: Supports multiple base configurations, dual relays, an RJ45 network port, and RS-485 connectivity.

• Building Intercom: The built-in intercom interface supports connection to compatible video intercom, elevator-control, access-control, and property-information systems.

• Media Playback: Supports music playback and device video interconnection.

• Smart Sensing: Includes proximity, temperature and humidity, and ambient-light sensing.

• Voice Control: Built-in voice-control functionality

Installation

• Mounting Options: Standard 86 in-wall base, desktop base, or wall-mounted installation

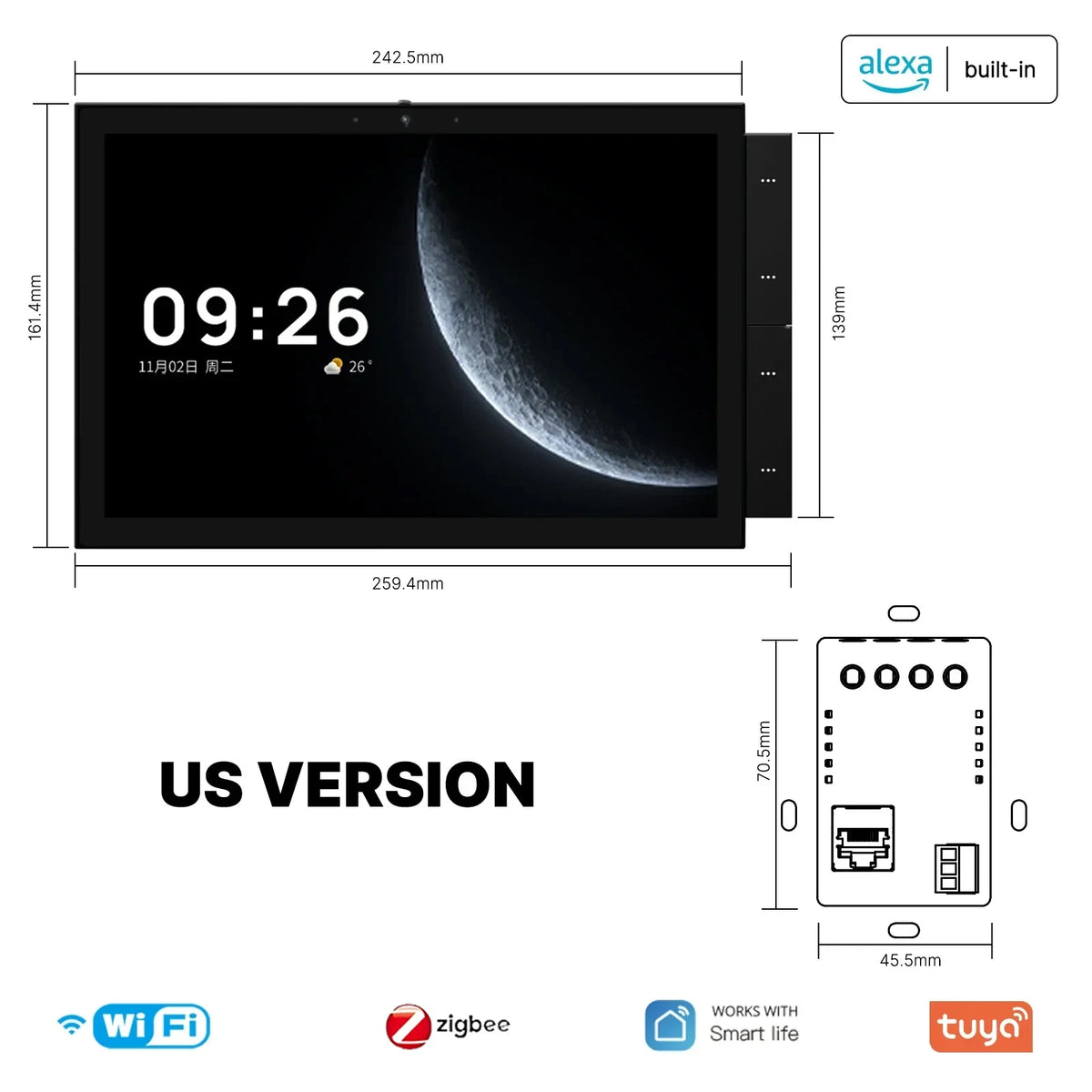

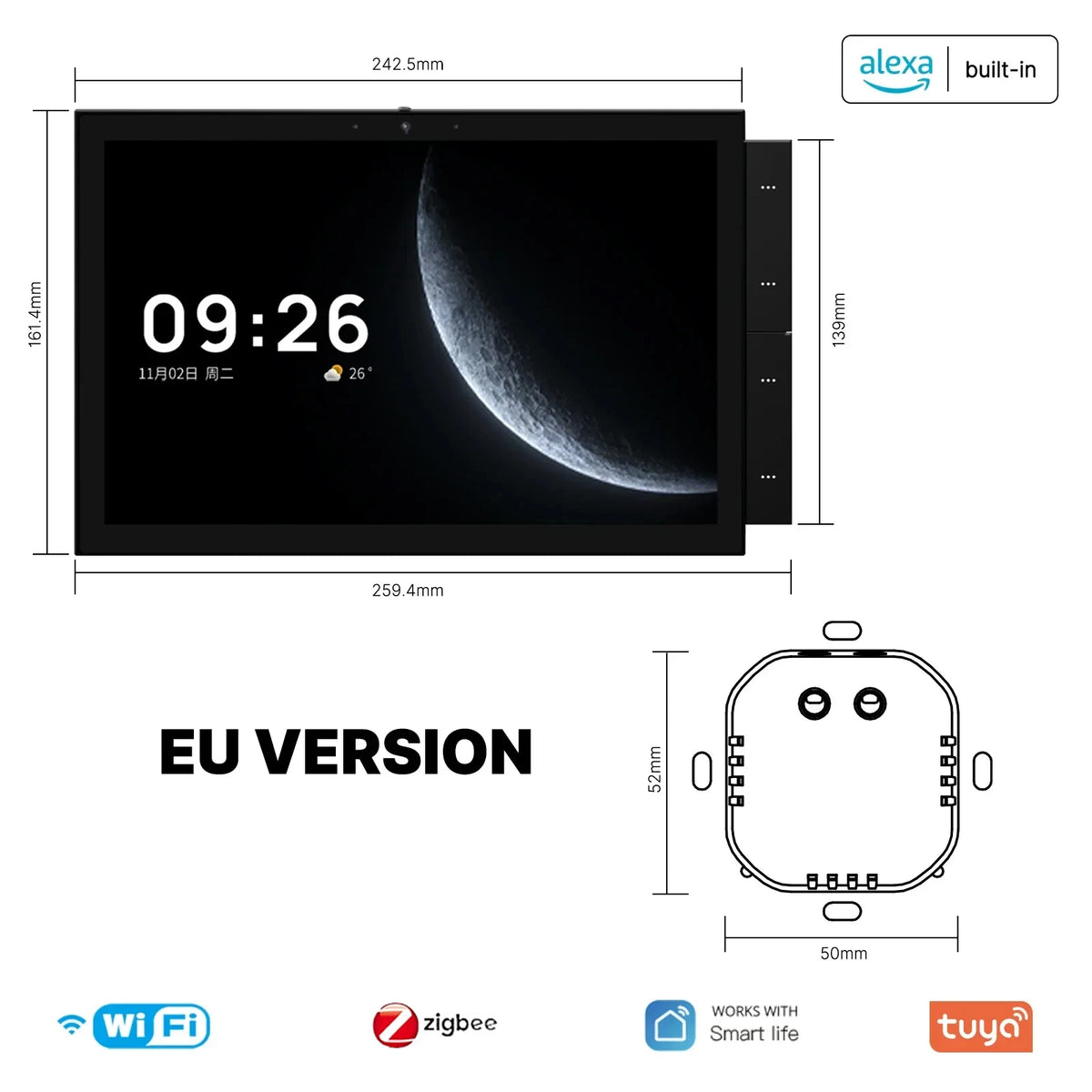

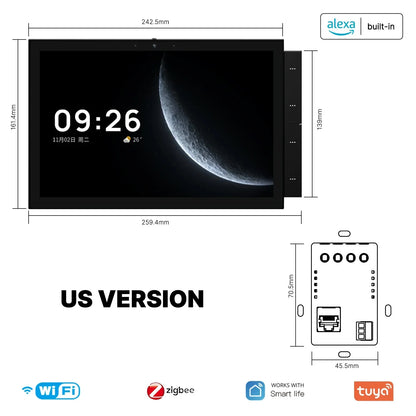

• Base Standards: US standard bottom box, European standard bottom box, or Asian standard bottom box

• Wired Power: Traditional live-and-neutral-wire connection

• Type-C Power: Supports power through a Type-C connection

Package Contents

• Smart Central Control Screen MAX: 1

• Wall Bracket: 1

• Strong-Current In-Wall Base Box: 1, optional

• Weak-Current In-Wall Base Box: 1, optional

• Screw Bag: 1

• Reset Pin: 1

• Product Manual: 1
